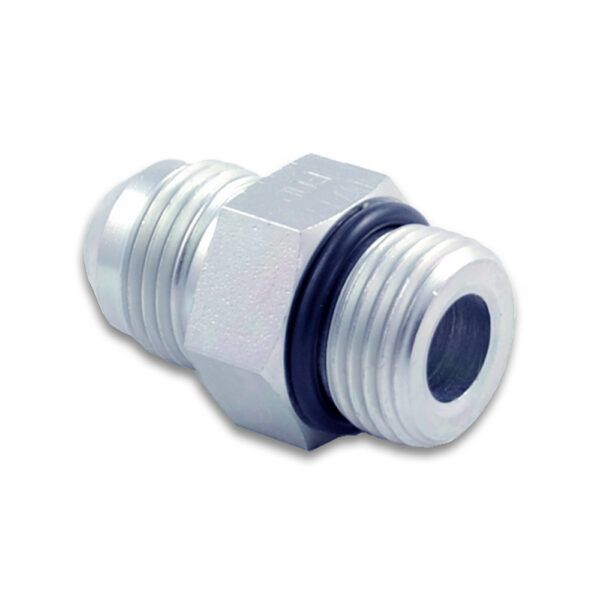

Rak Adapter JIC UF 37° kona / SAE UNF UF O-RING + STÖDRING (ISO 11926)

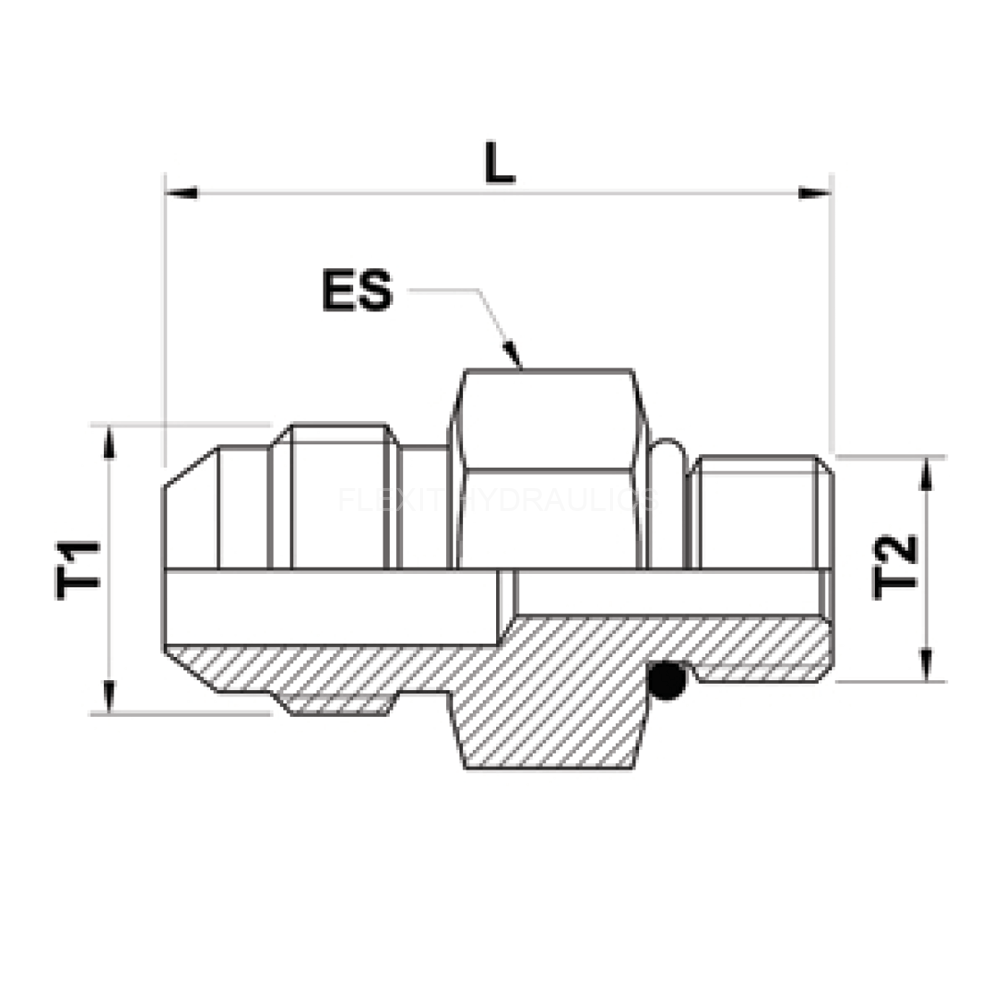

| T | Artikelnummer | T1 | T2 | A | B | D | CH | |
| mm | in | |||||||
| 6 | 1/4 | 61020120609 | 7/16-20 UNF-2A | 3/8-24 UNF-2A | 30 | 14 | 7,5 | 13 |
| 6 | 1/4 | 61020120611 | 7/16-20 UNF-2A | 7/16-20 UNF-2A | 31 | 14 | 9 | 14 |
| 6 | 1/4 | 61020120612 | 7/16-20 UNF-2A | 1/2-20 UNF-2A | 31 | 14 | 9 | 16 |
| 6 | 1/4 | 61020120614 | 7/16-20 UNF-2A | 9/16-18 UNF-2A | 32,5 | 14 | 10 | 19 |
| 6 | 1/4 | 61020120619 | 7/16-20 UNF-2A | 3/4-16 UNF-2A | 35 | 14 | 11 | 22 |
| 6 | 1/4 | 61020120622 | 7/16-20 UNF-2A | 7/8-14 UNF-2A | 38 | 14 | 13 | 27 |
| 8 | 5/16 | 61020120809 | 1/2-20 UNF-2A | 3/8-24 UNF-2A | 30 | 14 | 7,5 | 14 |
| 8 | 5/16 | 61020120811 | 1/2-20 UNF-2A | 7/16-20 UNF-2A | 31 | 14 | 9 | 14 |
| 8 | 5/16 | 61020120812 | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 31 | 14 | 9 | 16 |
| 8 | 5/16 | 61020120814 | 1/2-20 UNF-2A | 9/16-18 UNF-2A | 33 | 14 | 10 | 19 |
| 8 | 5/16 | 61020120819 | 1/2-20 UNF-2A | 3/4-16 UNF-2A | 35 | 14 | 11 | 22 |
| 10 | 3/8 | 61020121009 | 9/16-18 UNF-2A | 3/8-24 UNF-2A | 31 | 14 | 7,5 | 16 |
| 10 | 3/8 | 61020121011 | 9/16-18 UNF-2A | 7/16-20 UNF-2A | 32,5 | 14 | 9 | 16 |
| 10 | 3/8 | 61020121012 | 9/16-18 UNF-2A | 1/2-20 UNF-2A | 32,5 | 14 | 9 | 16 |
| 10 | 3/8 | 61020121014 | 9/16-18 UNF-2A | 9/16-18 UNF-2A | 33 | 14 | 10 | 19 |
| 10 | 3/8 | 61020121019 | 9/16-18 UNF-2A | 3/4-16 UNF-2A | 35 | 14 | 11 | 22 |
| 10 | 3/8 | 61020121022 | 9/16-18 UNF-2A | 7/8-14 UNF-2A | 37,5 | 14 | 13 | 27 |
| 12 | 1/2 | 61020121211 | 3/4-16 UNF-2A | 7/16-20 UNF-2A | 35 | 17 | 9 | 22 |
| 12 | 1/2 | 61020121214 | 3/4-16 UNF-2A | 9/16-18 UNF-2A | 35 | 17 | 10 | 22 |
| 12 | 1/2 | 61020121219 | 3/4-16 UNF-2A | 3/4-16 UNF-2A | 37,5 | 17 | 11 | 22 |
| 12 | 1/2 | 61020121222 | 3/4-16 UNF-2A | 7/8-14 UNF-2A | 40,5 | 17 | 13 | 27 |
| 12 | 1/2 | 61020121227 | 3/4-16 UNF-2A | 1″1/16-12 UN-2A | 44,5 | 17 | 15 | 32 |
| 14÷16 | 5/8 | 61020121612 | 7/8-14 UNF-2A | 1/2-20 UNF-2A | 38,5 | 19,5 | 9 | 24 |
| 14÷16 | 5/8 | 61020121614 | 7/8-14 UNF-2A | 9/16-18 UNF-2A | 38,5 | 19,5 | 10 | 24 |
| 14÷16 | 5/8 | 61020121619 | 7/8-14 UNF-2A | 3/4-16 UNF-2A | 40,5 | 19,5 | 11 | 24 |
| 14÷16 | 5/8 | 61020121622 | 7/8-14 UNF-2A | 7/8-14 UNF-2A | 43 | 19,5 | 13 | 27 |
| 14÷16 | 5/8 | 61020121627 | 7/8-14 UNF-2A | 1″1/16-12 UN-2A | 47 | 19,5 | 15 | 32 |
| 14÷16 | 5/8 | 61020121630 | 7/8-14 UNF-2A | 1″3/16-12 UN-2A | 47 | 19,5 | 15 | 35 |
| 14÷16 | 5/8 | 61020121633 | 7/8-14 UNF-2A | 1″5/16-12 UN-2A | 48 | 19,5 | 15 | 38 |
| 18-20 | 3/4 | 61020122019 | 1″1/16-12 UN-2A | 3/4-16 UNF-2A | 44,5 | 22 | 11 | 27 |
| 18-20 | 3/4 | 61020122022 | 1″1/16-12 UN-2A | 7/8-14 UNF-2A | 47 | 22 | 13 | 27 |
| 18-20 | 3/4 | 61020122027 | 1″1/16-12 UN-2A | 1″1/16-12 UN-2A | 50 | 22 | 15 | 32 |
| 18-20 | 3/4 | 61020122030 | 1″1/16-12 UN-2A | 1″3/16-12 UN-2A | 50 | 22 | 15 | 35 |
| 18-20 | 3/4 | 61020122033 | 1″1/16-12 UN-2A | 1″5/16-12 UN-2A | 50,5 | 22 | 15 | 38 |
| 18-20 | 3/4 | 61020122041 | 1″1/16-12 UN-2A | 1″5/8-12 UN-2A | 52,5 | 22 | 15 | 48 |
| 22 | 7/8 | 61020122222 | 1″3/16-12 UN-2A | 7/8-14 UNF-2A | 47 | 22,5 | 13 | 36 |
| 22 | 7/8 | 61020122227 | 1″3/16-12 UN-2A | 1″1/16-12 UN-2A | 49,5 | 22,5 | 15 | 35 |
| 22 | 7/8 | 61020122230 | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 50,5 | 22,5 | 15 | 35 |
| 22 | 7/8 | 61020122233 | 1″3/16-12 UN-2A | 1″5/16-12 UN-2A | 51,5 | 22,5 | 15 | 38 |
| 25 | 1″ | 61020122519 | 1″5/16-12 UN-2A | 3/4-16 UNF-2A | 47,5 | 23 | 11 | 36 |
| 25 | 1″ | 61020122522 | 1″5/16-12 UN-2A | 7/8-14 UNF-2A | 48 | 23 | 13 | 35 |
| 25 | 1″ | 61020122527 | 1″5/16-12 UN-2A | 1″1/16-12 UN-2A | 50,5 | 23 | 15 | 35 |
| 25 | 1″ | 61020122530 | 1″5/16-12 UN-2A | 1″3/16-12 UN-2A | 51,5 | 23 | 15 | 35 |
| 25 | 1″ | 61020122533 | 1″5/16-12 UN-2A | 1″5/16-12 UN-2A | 52 | 23 | 15 | 38 |
| 25 | 1″ | 61020122541 | 1″5/16-12 UN-2A | 1″5/8-12 UN-2A | 54 | 23 | 15 | 48 |
| 25 | 1″ | 61020122548 | 1″5/16-12 UN-2A | 1″7/8-12 UN-2A | 55 | 23 | 15 | 55 |
| 30-32 | 1″1/4 | 61020123227 | 1″5/8-12 UN-2A | 1″1/16-12 UN-2A | 53 | 24,5 | 15 | 42 |
| 30-32 | 1″1/4 | 61020123233 | 1″5/8-12 UN-2A | 1″5/16-12 UN-2A | 53 | 24,5 | 15 | 42 |
| 30-32 | 1″1/4 | 61020123241 | 1″5/8-12 UN-2A | 1″5/8-12 UN-2A | 55 | 24,5 | 15 | 48 |
| 30-32 | 1″1/4 | 61020123248 | 1″5/8-12 UN-2A | 1″7/8-12 UN-2A | 56,5 | 24,5 | 15 | 55 |
| 38 | 1″1/2 | 61020123841 | 1″7/8-12 UN-2A | 1″5/8-12 UN-2A | 64,5 | 27,5 | 15 | 50 |
| 38 | 1″1/2 | 61020123848 | 1″7/8-12 UN-2A | 1″7/8-12 UN-2A | 60 | 27,5 | 15 | 55 |
| 38 | 1″1/2 | 61020123863 | 1″7/8-12 UN-2A | 2″1/2-12 UN-2A | 64 | 27,5 | 15 | 70 |
| 50 | 2″ | 61020125063 | 2″1/2-12 UN-2A | 2″1/2-12 UN-2A | 70,5 | 34 | 15 | 70 |
| Vikt | N/A |
|---|---|
| Gänga T1 | 7/16" – JIC, 1/2" – JIC, 9/16" – JIC, 3/4" – JIC, 7/8" – JIC, 1.1/16" – JIC, 1.3/16" – JIC, 1.5/16" – JIC, 1.5/8" – JIC, 1.7/8" – JIC, 2.1/2" – JIC |
| Gänga T2 | 1.3/16" – SAE, 2.1/2" – SAE, 9/16" – SAE, 7/16" – SAE, 1/2" – SAE, 3/4" – SAE, 7/8" – SAE, 1.1/16" – SAE, 1.5/16" – SAE, 1.5/8" – SAE, 1.7/8" – SAE |
