SJ10 rak swivel
SJ10 rak swivel
SJ10 rak swivel

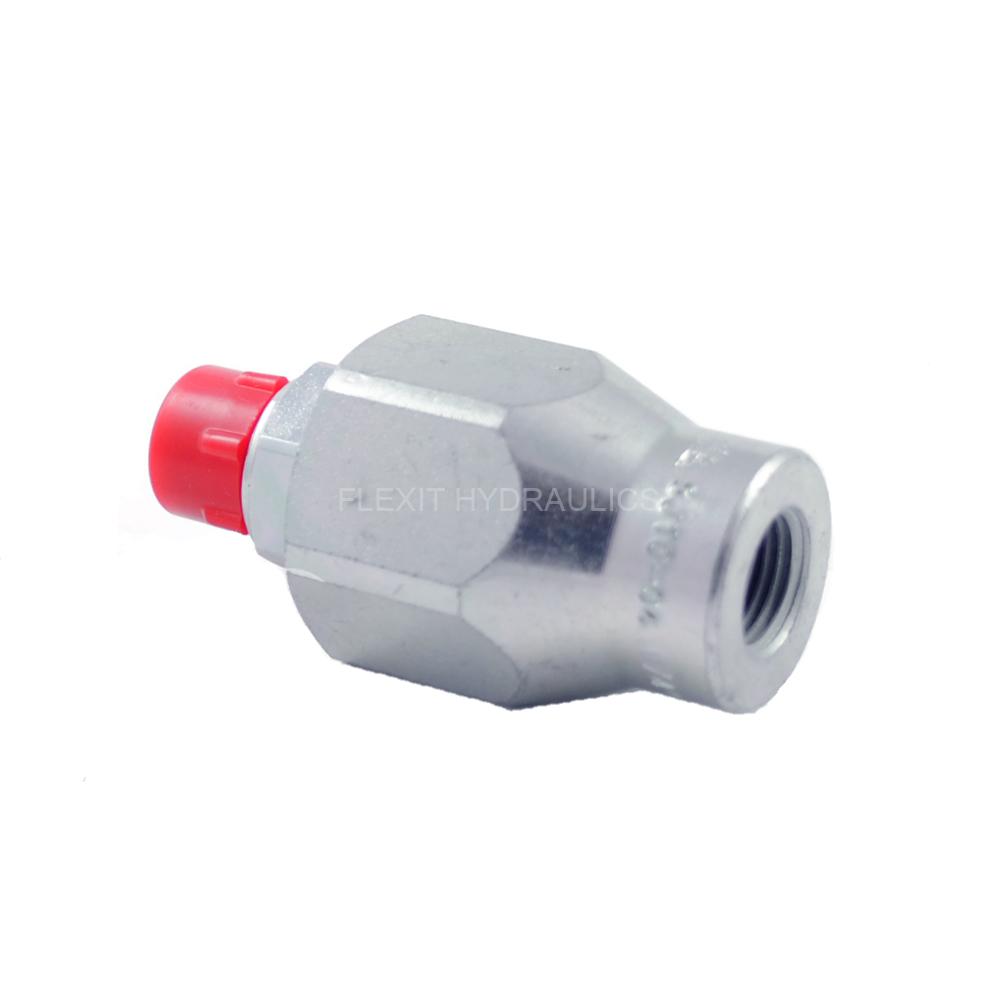

RAK SWIVEL BSP – SJ10

Från: 219,00 kr154,81 kr

The series SJ 10 swivel joints are designed to be mounted between a hose assembly and a rigid component in order to allow and compensate occasional rotations, preventing hose damages. The swivel joint rotation is based on one or two rows of radial balls (one row up to size 1/2″ included).

  • Standard seals in nitril rubber
  • Working temperatures with standard seals: -20°C / +110°C
  • Standard thread: BSP (GAS)
  • Special materials on request: AISI 303, AISI 316, Brass
  • Special seals on request: Viton, EPDM, Silicone
  • Special thread on request: NPTF, Metric, UNF

IMPORTANT: SJ 10 series is not suitable for continuous or fast rotation.

Artikelnr: SJ10 Kategori:



Artikelnummer Gänga A* B mm C mm D mm E Dia mm Max WP rotation Max WP
SJ1004 1/4″ 61 6 42 24 200 400
SJ1006 3/8″ 66 8,5 44 25 200 400
SJ1008 1/2″ 71 11,5 47 32 150 300
SJ1012 3/4″ 89 15 60 49,5 150 300
SJ1016 1″ 98 20 65 54,5 100 300
SJ1020 1.1/4″ 101 28 63 60 100 300
SJ1024 1.1/2″ 110 35 70 69,5 80 300
SJ1032 2″ 119 44 75 84,5 50 250

* Finns med andra gängor, skicka en förfrågan för pris.

Vikt N/A
BSP-gänga

, , , , , , ,
