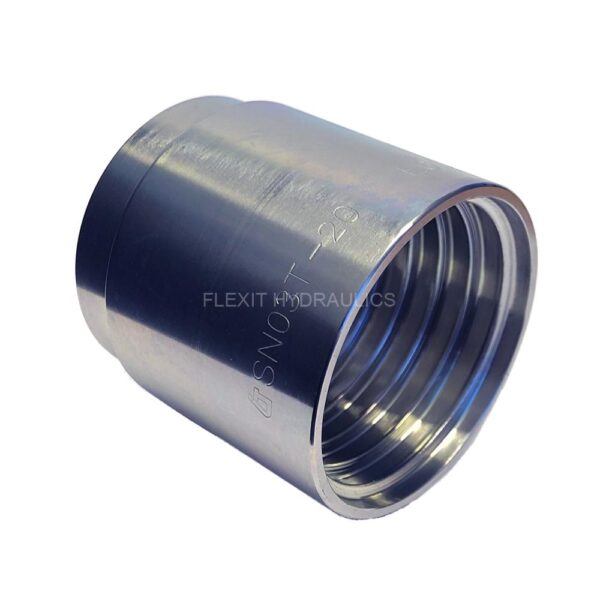

Skalfri hylsa för: EN 853 1SN / SAE 100 R1AT / EN 853 2SN / SAE 100 R2AT / EN 857 2SC / SAE 100 R16 /SAE 100 R17 / SAE 100 R19 / SAE 100 R4
Intertraco slang typ: FlexIT 1T, 2T, HT1, HT2, SC216, SK216, SK219, JF10K, R4, JW2K
Bridgestone slang typ: Bridgestone R2K
SN03T finns i både vanligt- samt syrafast material

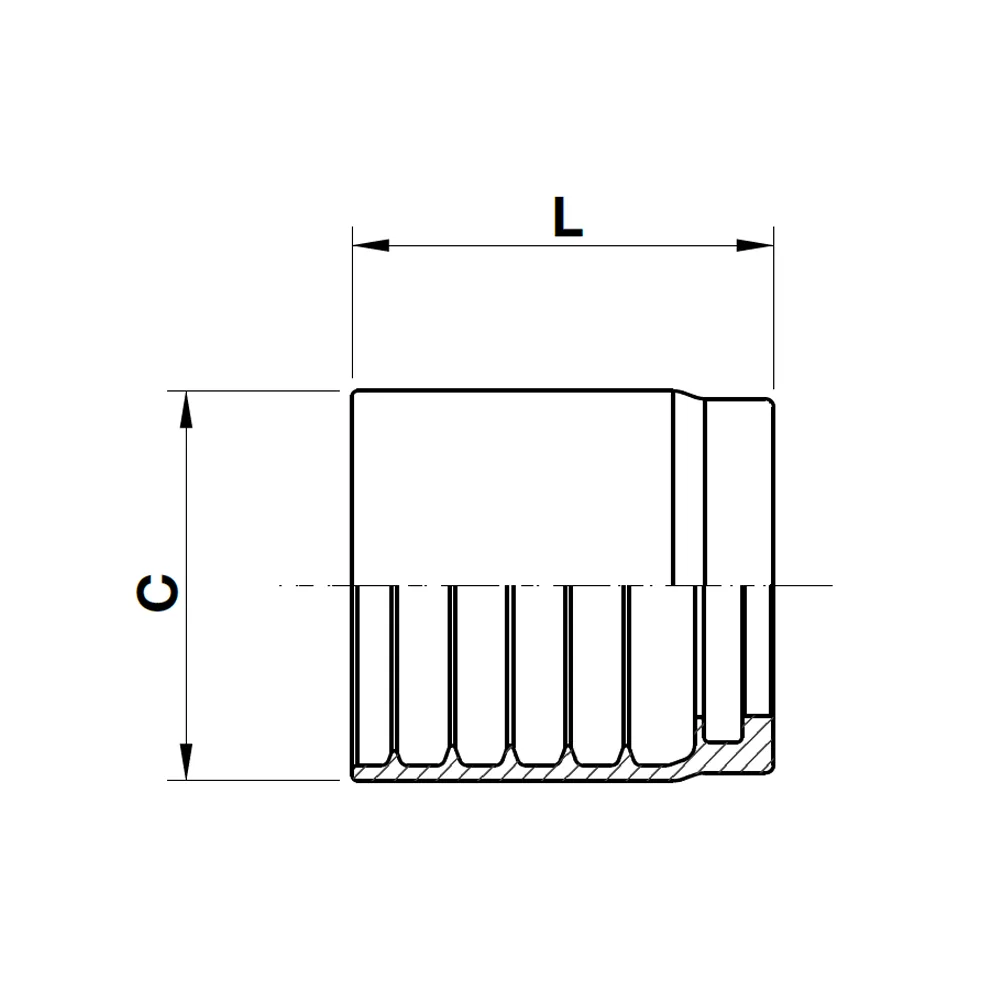

| Artikelnummer | Ø Slang | C | L | |||
| Std. | Syrafast | DN | Tum | Dash | mm | mm |
| SN03T-03 | SS-SN03T-03 | 5 | 3/16” | 3 | 20 | 25,7 |
| SN03T-04 | SS-SN03T-04 | 6 | 1/4” | 4 | 23 | 30 |
| SN03T-05 | SS-SN03T-05 | 8 | 5/16” | 5 | 24 | 30,5 |
| SN03T-06 | SS-SN03T-06 | 10 | 3/8” | 6 | 26 | 31,5 |
| SN03T-08 | SS-SN03T-08 | 12 | 1/2” | 8 | 29 | 33,5 |
| SN03T-10 | SS-SN03T-10 | 16 | 5/8” | 10 | 32 | 36 |
| SN03T-12 | SS-SN03T-12 | 19 | 3/4” | 12 | 37 | 40 |
| SN03T-16 | SS-SN03T-16 | 25 | 1” | 16 | 46 | 50 |
| SN03T-20 | SS-SN03T-20 | 31 | 1.1/4” | 20 | 59 | 59 |
| SN03T-24 | SS-SN03T-24 | 38 | 1.1/2” | 24 | 67 | 67 |
| SN03T-32 | SS-SN03T-32 | 51 | 2” | 32 | 80 | 82 |
| SN03T-40 | SS-SN03T-40 | 63 | 2.1/2” | 40 | 88,3 | 80 |
| SN03T-48 | SS-SN03T-48 | 76 | 3” | 48 | 103 | 87,5 |
| Vikt | N/A |
|---|---|
| Dimensioner | N/A |
| Material | |
| Slangdimension | 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", 1.1/2", 2", 3" |
