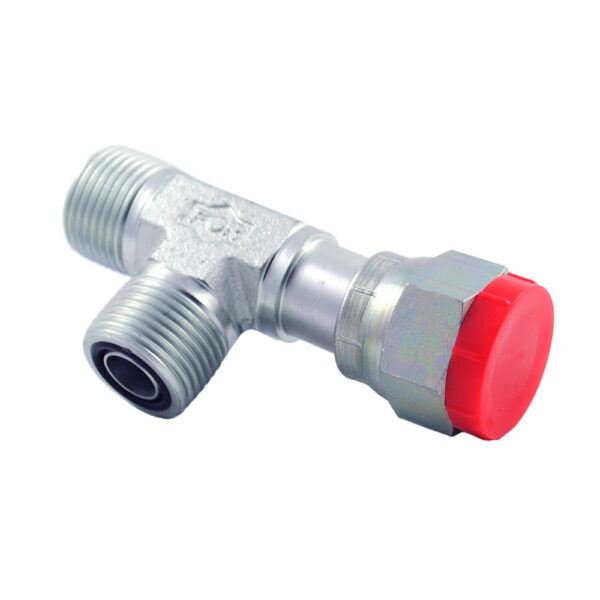

Adapter L ORFS UF / ORFS IR SW / ORFS UF
| T1 | T3 | Artikelnummer | T1 | T2 | T3 | B | B1 | C | CH | ||
| mm | in | mm | in | ||||||||
| 6 | 1/4 | 6 | 1/4 | 651300106 | 9/16-18 UNF-2A | 9/16-18 UNF-2A | 9/16-18 UNF-2A | 21,5 | 21,5 | 34,5 | 17 |
| 8-10 | 5/16-3/8 | 8-10 | 5/16-3/8 | 651300110 | 11/16-16 UN-2A | 11/16-16 UN-2A | 11/16-16 UN-2A | 25 | 25 | 40 | 22 |
| 12 | 1/2 | 12 | 1/2 | 651300112 | 13/16-16 UN-2A | 13/16-16 UN-2A | 13/16-16 UN-2A | 28 | 28 | 49 | 24 |
| 14÷16 | 5/8 | 14÷16 | 5/8 | 651300116 | 1″-14 UNS-2A | 1″-14 UNS-2A | 1″-14 UNS-2A | 33,5 | 33,5 | 54,5 | 30 |
| 18-20 | 3/4 | 18-20 | 3/4 | 651300120 | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 37,5 | 37,5 | 61 | 36 |
| 22-25 | 7/8-1″ | 22-25 | 7/8-1″ | 651300125 | 1″7/16-12 UN-2A | 1″7/16-12 UN-2A | 1″7/16-12 UN-2A | 42 | 42 | 68,5 | 41 |
| 28÷32 | 1″1/4 | 28÷32 | 1″1/4 | 651300132 | 1″11/16-12 UN-2A | 1″11/16-12 UN-2A | 1″11/16-12 UN-2A | 45 | 45 | 73,5 | 50 |
| 35-38 | 1″1/2 | 35-38 | 1″1/2 | 651300138 | 2″-12 UN-2A | 2″-12 UN-2A | 2″-12 UN-2A | 49 | 49 | 76 | 57 |
| 6 | 1/4 | 8-10 | 5/16-3/8 | 6513001061010 | 9/16-18 UNF-2A | 11/16-16 UN-2A | 11/16-16 UN-2A | 23,5 | 25 | 40 | 22 |
| 6 | 1/4 | 12 | 1/2 | 6513001061212 | 9/16-18 UNF-2A | 13/16-16 UN-2A | 13/16-16 UN-2A | 25 | 28 | 49 | 24 |
| 6 | 1/4 | 14÷16 | 5/8 | 6513001061616 | 9/16-18 UNF-2A | 1″-14 UNS-2A | 1″-14 UNS-2A | 28 | 33,5 | 54,5 | 30 |
| 8-10 | 5/16-3/8 | 12 | 1/2 | 6513001101212 | 11/16-16 UN-2A | 13/16-16 UN-2A | 13/16-16 UN-2A | 27 | 28 | 49 | 24 |
| 12 | 1/2 | 6 | 1/4 | 6513001121206 | 13/16-16 UN-2A | 13/16-16 UN-2A | 9/16-18 UNF-2A | 28 | 25 | 49 | 24 |
| 12 | 1/2 | 8-10 | 5/16-3/8 | 6513001121210 | 13/16-16 UN-2A | 13/16-16 UN-2A | 11/16-16 UN-2A | 28 | 27 | 49 | 24 |
| 14÷16 | 5/8 | 6 | 1/4 | 6513001161606 | 1″-14 UNS-2A | 1″-14 UNS-2A | 9/16-18 UNF-2A | 33,5 | 28 | 54,5 | 30 |
| 14÷16 | 5/8 | 8-10 | 5/16-3/8 | 6513001161610 | 1″-14 UNS-2A | 1″-14 UNS-2A | 11/16-16 UN-2A | 33,5 | 29 | 54,5 | 30 |
| 14÷16 | 5/8 | 18-20 | 3/4 | 6513001161620 | 1″-14 UNS-2A | 1″-14 UNS-2A | 1″3/16-12 UN-2A | 36 | 37,5 | 57,5 | 30 |
| 18-20 | 3/4 | 14÷16 | 5/8 | 6513001201616 | 1″3/16-12 UN-2A | 1″-14 UNS-2A | 1″-14 UNS-2A | 37,5 | 36 | 57,5 | 30 |
| 18-20 | 3/4 | 12 | 1/2 | 6513001202012 | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 13/16-16 UN-2A | 37,5 | 33,5 | 61 | 36 |
| 18-20 | 3/4 | 14÷16 | 5/8 | 6513001202016 | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 1″-14 UNS-2A | 37,5 | 36 | 61 | 36 |
| 18-20 | 3/4 | 22-25 | 7/8-1″ | 6513001202025 | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 1″7/16-12 UN-2A | 41,5 | 42 | 67 | 36 |
| 22-25 | 7/8-1″ | 8-10 | 5/16-3/8 | 6513001252510 | 1″7/16-12 UN-2A | 1″7/16-12 UN-2A | 11/16-16 UN-2A | 42 | 36 | 68,5 | 41 |
| 22-25 | 7/8-1″ | 12 | 1/2 | 6513001252512 | 1″7/16-12 UN-2A | 1″7/16-12 UN-2A | 13/16-16 UN-2A | 42 | 37,5 | 68,5 | 41 |
| 22-25 | 7/8-1″ | 18-20 | 3/4 | 6513001252520 | 1″7/16-12 UN-2A | 1″7/16-12 UN-2A | 1″3/16-12 UN-2A | 42 | 41,5 | 68,5 | 41 |
| Vikt | N/A |
|---|---|
| Gänga T1 | 9/16" – ORFS, 11/16" – ORFS, 13/16" – ORFS, 1" – ORFS, 1.3/16" – ORFS, 1.7/16" – ORFS, 1.11/16" – ORFS, 2" – ORFS |
| Gänga T2 | 9/16" – ORFS, 11/16" – ORFS, 13/16" – ORFS, 1" – ORFS, 1.3/16" – ORFS, 1.7/16" – ORFS, 1.11/16" – ORFS, 2" – ORFS |
| Gänga T3 | 9/16" – ORFS, 11/16" – ORFS, 13/16" – ORFS, 1" – ORFS, 1.3/16" – ORFS, 1.7/16" – ORFS, 1.11/16" – ORFS, 2" – ORFS |
