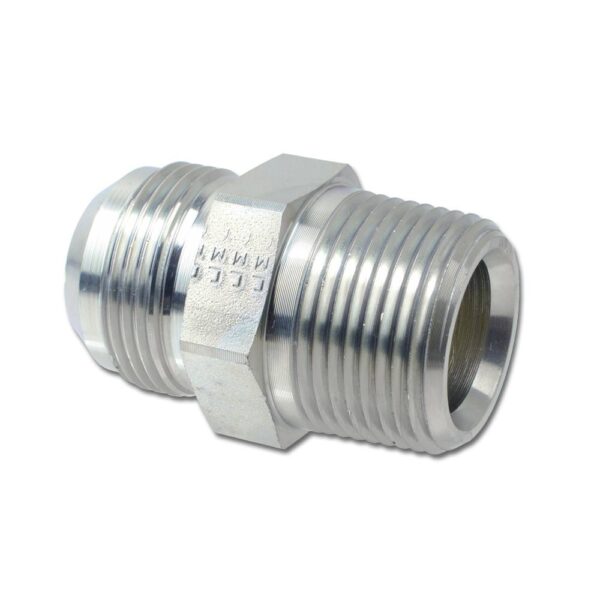

Rak Adapter JIC UF 37° kona / BSPT UF (ISO 7)
| T | Artikelnummer | T1 | T2 | A | B | D | CH | |
| mm | in | |||||||
| 6 | 1/4 | 61021110610 | 7/16-20 UNF-2A | R1/8-28 GAS con. | 29 | 14 | 9 | 13 |
| 6 | 1/4 | 61021110613 | 7/16-20 UNF-2A | R1/4-19 GAS con. | 33 | 14 | 13 | 14 |
| 6 | 1/4 | 61021110617 | 7/16-20 UNF-2A | R3/8-19 GAS con. | 33,5 | 14 | 13,5 | 19 |
| 8 | 5/16 | 61021110810 | 1/2-20 UNF-2A | R1/8-28 GAS con. | 29 | 14 | 9 | 14 |
| 8 | 5/16 | 61021110813 | 1/2-20 UNF-2A | R1/4-19 GAS con. | 33 | 14 | 13 | 14 |
| 8 | 5/16 | 61021110817 | 1/2-20 UNF-2A | R3/8-19 GAS con. | 35 | 14 | 13,5 | 19 |
| 10 | 3/8 | 61021111010 | 9/16-18 UNF-2A | R1/8-28 GAS con. | 30 | 14 | 9 | 17 |
| 10 | 3/8 | 61021111013 | 9/16-18 UNF-2A | R1/4-19 GAS con. | 33,5 | 14 | 13 | 17 |
| 10 | 3/8 | 61021111017 | 9/16-18 UNF-2A | R3/8-19 GAS con. | 33,5 | 14 | 13,5 | 19 |
| 10 | 3/8 | 61021111021 | 9/16-18 UNF-2A | R1/2-14 GAS con. | 37,5 | 14 | 15,5 | 24 |
| 10 | 3/8 | 61021111026 | 9/16-18 UNF-2A | R3/4-14 GAS con. | 40 | 14 | 17 | 30 |
| 12 | 1/2 | 61021111213 | 3/4-16 UNF-2A | R1/4-19 GAS con. | 36,5 | 17 | 13 | 22 |
| 12 | 1/2 | 61021111217 | 3/4-16 UNF-2A | R3/8-19 GAS con. | 36,5 | 17 | 13,5 | 22 |
| 12 | 1/2 | 61021111221 | 3/4-16 UNF-2A | R1/2-14 GAS con. | 40,5 | 17 | 15,5 | 24 |
| 12 | 1/2 | 61021111226 | 3/4-16 UNF-2A | R3/4-14 GAS con. | 43 | 17 | 17 | 30 |
| 14÷16 | 5/8 | 61021111613 | 7/8-14 UNF-2A | R1/4-19 GAS con. | 42 | 19,5 | 13 | 24 |
| 14÷16 | 5/8 | 61021111617 | 7/8-14 UNF-2A | R3/8-19 GAS con. | 41 | 19,5 | 13,5 | 24 |
| 14÷16 | 5/8 | 61021111621 | 7/8-14 UNF-2A | R1/2-14 GAS con. | 43 | 19,5 | 15,5 | 24 |
| 14÷16 | 5/8 | 61021111626 | 7/8-14 UNF-2A | R3/4-14 GAS con. | 47 | 19,5 | 17 | 30 |
| 14÷16 | 5/8 | 61021111633 | 7/8-14 UNF-2A | R1″-11 GAS con. | 49 | 19,5 | 19,5 | 36 |
| 18-20 | 3/4 | 61021112013 | 1″1/16-12 UN-2A | R1/4-19 GAS con. | 45,5 | 22,5 | 13 | 30 |
| 18-20 | 3/4 | 61021112021 | 1″1/16-12 UN-2A | R1/2-14 GAS con. | 47,5 | 22 | 15,5 | 30 |
| 18-20 | 3/4 | 61021112026 | 1″1/16-12 UN-2A | R3/4-14 GAS con. | 49,5 | 22 | 17 | 30 |
| 18-20 | 3/4 | 61021112033 | 1″1/16-12 UN-2A | R1″-11 GAS con. | 51,5 | 22 | 19,5 | 36 |
| 22 | 7/8 | 61021112226 | 1″3/16-12 UN-2A | R3/4-14 GAS con. | 50 | 22,5 | 17 | 32 |
| 25 | 1″ | 61021112526 | 1″5/16-12 UN-2A | R3/4-14 GAS con. | 50,5 | 23 | 17 | 36 |
| 25 | 1″ | 61021112533 | 1″5/16-12 UN-2A | R1″-11 GAS con. | 52,5 | 23 | 19,5 | 36 |
| 25 | 1″ | 61021112542 | 1″5/16-12 UN-2A | R1″1/4-11 GAS con. | 57,5 | 23 | 21,5 | 46 |
| 25 | 1″ | 61021112560 | 1″5/16-12 UN-2A | R2″-11 GAS con | 65 | 23 | 26 | 65 |
| 30-32 | 1″1/4 | 61021113233 | 1″5/8-12 UN-2A | R1″-11 GAS con. | 55,5 | 24,5 | 19,5 | 46 |
| 30-32 | 1″1/4 | 61021113242 | 1″5/8-12 UN-2A | R1″1/4-11 GAS con. | 57,5 | 24,5 | 21,5 | 46 |
| 30-32 | 1″1/4 | 61021113248 | 1″5/8-12 UN-2A | R1″1/2-11 GAS con. | 59,5 | 24,5 | 21,5 | 50 |
| 38 | 1″1/2 | 61021113842 | 1″7/8-12 UN-2A | R1″1/4-11 GAS con. | 62,5 | 27,5 | 21,5 | 50 |
| 38 | 1″1/2 | 61021113848 | 1″7/8-12 UN-2A | R1″1/2-11 GAS con. | 62,5 | 27,5 | 21,5 | 50 |
| 50 | 2″ | 61021115048 | 2″1/2-12 UN-2A | R1″1/2-11 GAS con. | 74,5 | 34 | 21,5 | 65 |
| 50 | 2″ | 61021115060 | 2″1/2-12 UN-2A | R2″-11 GAS con | 76 | 34 | 26 | 65 |
| Vikt | N/A |
|---|---|
| Gänga T1 | |
| Gänga T2 | 1/8" – BSPT, 1/4" – BSPT, 3/8" – BSPT, 1/2" – BSPT, 1" – BSPT |
