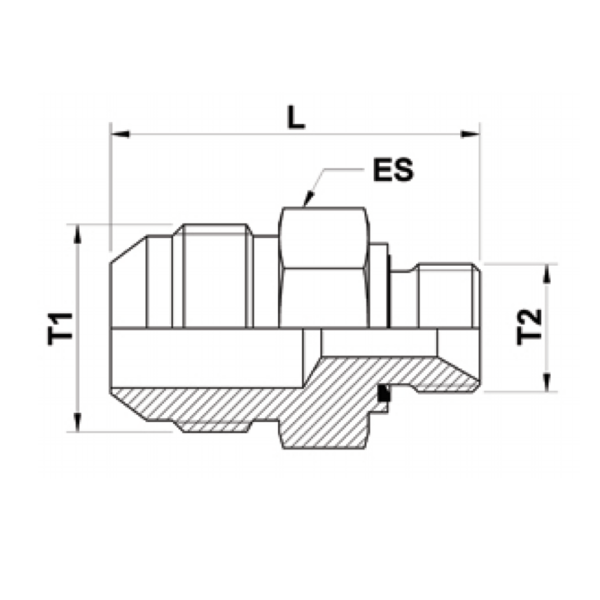

Rak Adapter JIC UF 37° kona / DKO UF ED-Tätad
| T | Artikelnummer | T1 | T2 | A | B | D | CH | |
| mm | in | |||||||
| 6 | 1/4 | 61020780610 | 7/16-20 UNF-2A | M10x1-6g | 30 | 14 | 8 | 14 |
| 6 | 1/4 | 61020780612 | 7/16-20 UNF-2A | M12x1,5-6g | 35 | 14 | 12 | 17 |
| 8 | 5/16 | 61020780810 | 1/2-20 UNF-2A | M10x1-6g | 30 | 14 | 8 | 14 |
| 8 | 5/16 | 61020780812 | 1/2-20 UNF-2A | M12x1,5-6g | 35 | 14 | 12 | 17 |
| 10 | 3/8 | 61020781014 | 9/16-18 UNF-2A | M14x1,5-6g | 36 | 14 | 12 | 19 |
| 10 | 3/8 | 61020781016 | 9/16-18 UNF-2A | M16x1,5-6g | 36 | 14 | 12 | 22 |
| 12 | 1/2 | 61020781214 | 3/4-16 UNF-2A | M14x1,5-6g | 39 | 17 | 12 | 22 |
| 12 | 1/2 | 61020781216 | 3/4-16 UNF-2A | M16x1,5-6g | 39 | 17 | 12 | 22 |
| 12 | 1/2 | 61020781218 | 3/4-16 UNF-2A | M18x1,5-6g | 39,5 | 17 | 12 | 24 |
| 14÷16 | 5/8 | 61020781618 | 7/8-14 UNF-2A | M18x1,5-6g | 42 | 19,5 | 12 | 24 |
| 14÷16 | 5/8 | 61020781620 | 7/8-14 UNF-2A | M20x1,5-6g | 45 | 19,5 | 14 | 27 |
| 14÷16 | 5/8 | 61020781622 | 7/8-14 UNF-2A | M22x1,5-6g | 45 | 19,5 | 14 | 27 |
| 18-20 | 3/4 | 61020782022 | 1″1/16-12 UN-2A | M22x1,5-6g | 48,5 | 22 | 14 | 30 |
| 18-20 | 3/4 | 61020782027 | 1″1/16-12 UN-2A | M27x2-6g | 52 | 22 | 16 | 32 |
| 25 | 1″ | 61020782526 | 1″5/16-12 UN-2A | M26x1,5-6g | 55 | 23 | 16 | 36 |
| 25 | 1″ | 61020782527 | 1″5/16-12 UN-2A | M27x2-6g | 53 | 23 | 16 | 36 |
| 25 | 1″ | 61020782533 | 1″5/16-12 UN-2A | M33x2-6g | 56 | 23 | 18 | 41 |
| 30-32 | 1″1/4 | 61020783242 | 1″5/8-12 UN-2A | M42x2-6g | 61 | 24,5 | 20 | 50 |
| 38 | 1″1/2 | 61020783848 | 1″7/8-12 UN-2A | M48x2-6g | 68 | 27,5 | 22 | 55 |
| Vikt | N/A |
|---|---|
| Gänga T1 | 7/16" – JIC, 1/2" – JIC, 9/16" – JIC, 3/4" – JIC, 7/8" – JIC, 1.1/16" – JIC, 1.5/16" – JIC, 1.5/8" – JIC, 1.7/8" – JIC |
| Gänga T2 | M10X1, M12X1,5, M14X1,5, M16X1,5, M18X1,5, M20X1,5, M22X1,5, M26X1,5, M27X2, M33X2, M42X2, M48X2 |
