157,00 kr

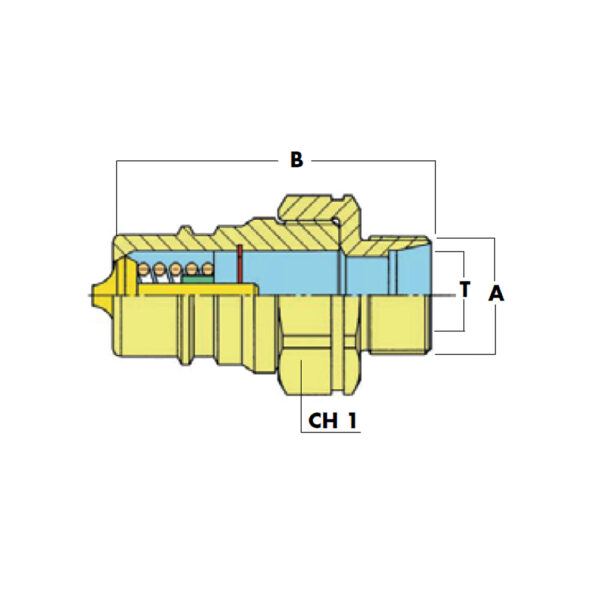

The P series push-pull couplings are interchangeable according to ISO 7241-A and ISO 5675. These couplings are normally adopted on agricoltural implements and applications; the possible panel mounting allows to easily connect and disconnect plug and socket with one hand only. P series couplings are available with both poppet valve and ball valve; the standard thread are BSP, NPTF and metric male 24° according to DIN 2353.

  • Poppet or ball valves
  • Interchangeable ISO 7241-A and ISO- 5675
  • Material: steel
  • Poppet valve in hardened steel
  • Plug in hardened steel
  • Working temperatures with standard seals -20°C / +110°C
  • Standard seals in nitril rubber
  • Back-up ring in PTFE.
  • Special features: A special valve is available on request to allow the plug to be connected in presence of residual back pressure.
Artikelnr: N/A Kategorier: , ,
Vikt N/A
Anslutning Snabbkoppling

Gänga Snabbkoppling

, , , , ,
