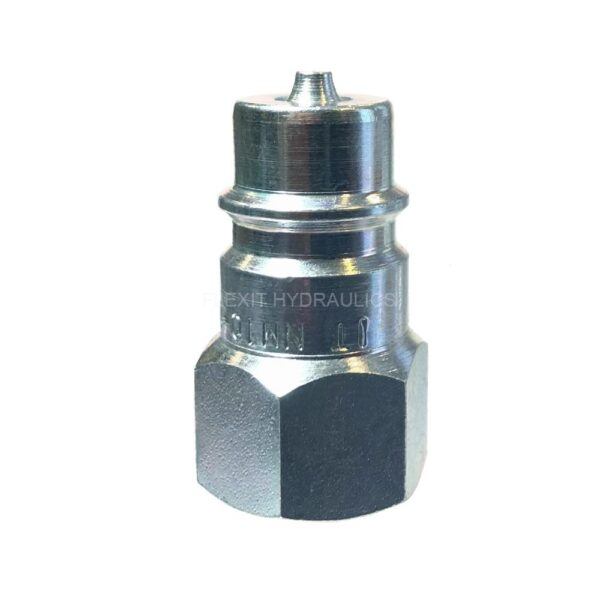

JORDBRUK NIPPEL “Poppet Valve” – NM

46,00 kr

Nollställ
Artikelnr: NM Kategorier: ,

Series N design, also known as agricoltural interchange, is probably the most popular coupling design worldwide on agricoltural applications. The size 1/2” is identical to series A, ISO 7241-A interchangeable.

  • Available with both poppet and ball valve
  • Standard material: steel
  • Plugs treated with induction hardening
  • Internal valves in hardened steel
  • Standard seals in nitril rubber
  • Back-up seals in teflon
  • Working temperature with standard nitril seals; -20°C / +110°C
  • Special seals on request: Viton, EPDM, Neoprene
  • 1/2” plug and socket are also available in a special version allowing their connection in presence of residual back pressure.
Vikt Inte tillgänglig
Anslutning Snabbkoppling

1/4"-6,3mm, 3/8"-10mm, 1/2"-12,5mm, 3/4"-20mm, 1"-25mm

Gänga Snabbkoppling

1/4"-BSP, 1/4"-NPT, 3/8"-BSP, 3/8"-BSPT, 3/8"-NPT, 1/2"-BSP, 1/2"-BSPT, 1/2"-NPT, 3/4"-BSP, 3/4"-NPT, 1"-BSP, 1"-NPT
