SAE3000 – AX10B
Från: 144,00 kr
Rak 3000 SAE fläns (kod 61) Presskoppling
Slangkoppling B-serie för 1-4 stål hydraulslangar.

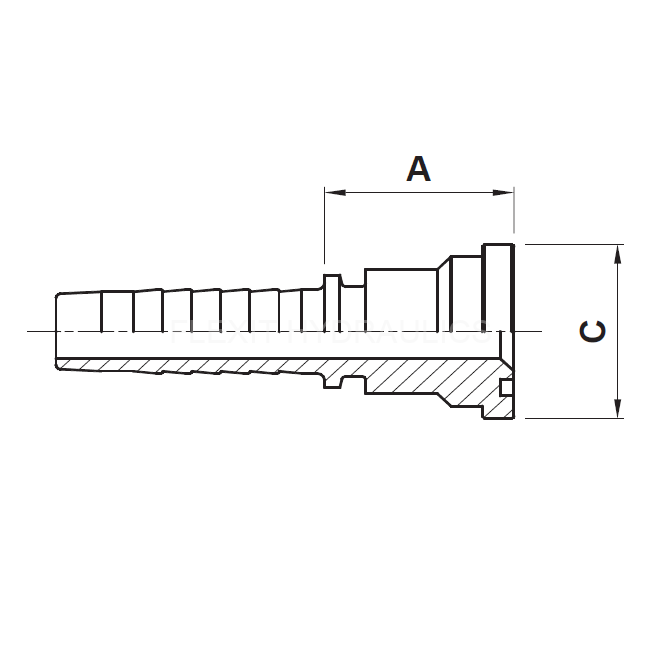

| Artikelnummer | DN | Tum | Dash | Flange | A | C |
| AX10B0808 | 12 | 1/2″ | 08 | 1/2″ | 38 | 30,2 |
| AX10B0812 | 12 | 1/2″ | 08 | 3/4″ | 39 | 38,1 |
| AX10B1008 | 16 | 5/8″ | 10 | 1/2″ | 30,2 | |
| AX10B1012 | 16 | 5/8″ | 10 | 3/4″ | 39 | 38,1 |
| AX10B1212 | 19 | 3/4″ | 12 | 3/4″ | 39,5 | 38 |
| AX10B1216 | 19 | 3/4″ | 12 | 1″ | 46 | 44,5 |
| AX10B1220 | 19 | 3/4″ | 12 | 1.1/4″ | 47 | 50,8 |
| AX10B1612 | 25 | 1″ | 16 | 3/4″ | 38 | |
| AX10B1616 | 25 | 1″ | 16 | 1″ | 47,5 | 44,5 |
| AX10B1620 | 25 | 1″ | 16 | 1.1/4″ | 48,5 | 44,5 |
| AX10B2016 | 31 | 1.1/4″ | 20 | 1″ | 58,5 | 44,5 |
| AX10B2020 | 31 | 1.1/4″ | 20 | 1.1/4″ | 49,5 | 50,8 |
| AX10B2024 | 31 | 1.1/4″ | 20 | 1.1/2″ | 53 | 60,3 |
| AX10B2420 | 38 | 1.1/2″ | 24 | 1.1/4″ | 57,5 | 50,8 |
| AX10B2424 | 38 | 1.1/2″ | 24 | 1.1/2″ | 53 | 60,3 |
| AX10B2432 | 38 | 1.1/2″ | 24 | 2″ | 74,5 | 71,4 |
| AX10B3224 | 51 | 2″ | 32 | 1.1/2″ | 89 | 60,3 |
| AX10B3232 | 51 | 2″ | 32 | 2″ | 78,5 | 71,4 |
| AX10B3240 | 51 | 2″ | 32 | 2.1/2″ | 78,5 | 84,1 |
| AX10B4040 | 63 | 2.1/2″ | 40 | 2.1/2″ | 90 | 84,1 |
| AX10B4048 | 63 | 2.1/2″ | 40 | 3″ | 90 | 101,6 |
| AX10B4848 | 76 | 3″ | 48 | 3″ | 91,5 | 101,6 |
| Vikt | Inte tillgänglig |
|---|---|
| Slangdimension | 1/2", 5/8", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1/2", 3" |
| Flänsdimension | 1.1/2" 60,3mm, 1.1/4" 50,8mm, 1" 44,5mm, 1/2" 30,2mm, 2.1/2" 84,1mm, 2" 71,4mm, 3" 101,6mm, 3/4" 38,1mm |
