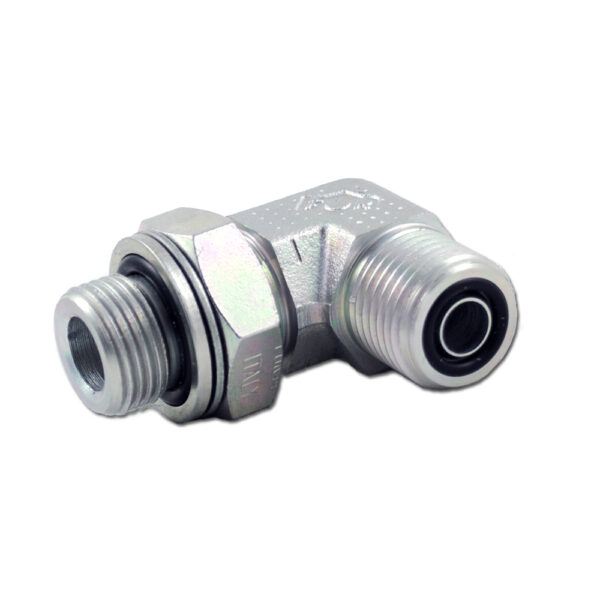

Adapter 90° ORFS UF / SAE UF O-RING + STÖDRING STÄLLBAR (ISO 11926)
| T | Artikelnummer | T1 | T2 | B | C | CH | |
| mm | in | ||||||
| 6 | 1/4 | A507021-0611 | 9/16-18 UNF-2A | 7/16-20 UNF-2A | 21,5 | 32,5 | 16 |
| 6 | 1/4 | A507021-0614 | 9/16-18 UNF-2A | 9/16-18 UNF-2A | 23,5 | 37 | 19 |
| 6 | 1/4 | SA507021-0619 | 9/16-18 UNF-2A | 3/4-16 UNF-2A | 25 | 40,5 | 24 |
| 6 | 1/4 | SA507021-0622 | 9/16-18 UNF-2A | 7/8-14 UNF-2A | 28 | 50 | 27 |
| 8-10 | 5/16-3/8 | A507021-1011 | 11/16-16 UN-2A | 7/16-20 UNF-2A | 25 | 35 | 16 |
| 8-10 | 5/16-3/8 | SA507021-1012 | 11/16-16 UN-2A | 1/2-20 UNF-2A | 25 | 35 | 16 |
| 8-10 | 5/16-3/8 | A507021-1014 | 11/16-16 UN-2A | 9/16-18 UNF-2A | 25 | 37 | 19 |
| 8-10 | 5/16-3/8 | A507021-1019 | 11/16-16 UN-2A | 3/4-16 UNF-2A | 26,5 | 40,5 | 24 |
| 8-10 | 5/16-3/8 | SA507021-1022 | 11/16-16 UN-2A | 7/8-14 UNF-2A | 29,5 | 50 | 27 |
| 12 | 1/2 | SA507021-1211 | 13/16-16 UN-2A | 7/16-20 UNF-2A | 28 | 34,5 | 16 |
| 12 | 1/2 | A507021-1214 | 13/16-16 UN-2A | 9/16-18 UNF-2A | 28 | 36,5 | 19 |
| 12 | 1/2 | A507021-1219 | 13/16-16 UN-2A | 3/4-16 UNF-2A | 28 | 40,5 | 24 |
| 12 | 1/2 | A507021-1222 | 13/16-16 UN-2A | 7/8-14 UNF-2A | 31 | 50 | 27 |
| 12 | 1/2 | SA507021-1227 | 13/16-16 UN-2A | 1″1/16-12 UN-2A | 33,5 | 55 | 35 |
| 14÷16 | 5/8 | SA507021-1614 | 1″-14 UNS-2A | 9/16-18 UNF-2A | 33,5 | 41,5 | 19 |
| 14÷16 | 5/8 | A507021-1619 | 1″-14 UNS-2A | 3/4-16 UNF-2A | 33,5 | 46 | 24 |
| 14÷16 | 5/8 | A507021-1622 | 1″-14 UNS-2A | 7/8-14 UNF-2A | 33,5 | 50 | 27 |
| 14÷16 | 5/8 | A507021-1627 | 1″-14 UNS-2A | 1″1/16-12 UN-2A | 36 | 55 | 35 |
| 14÷16 | 5/8 | SA507021-1633 | 1″-14 UNS-2A | 1″5/16-12 UN-2A | 40 | 60 | 41 |
| 18-20 | 3/4 | SA507021-2019 | 1″3/16-12 UN-2A | 3/4-16 UNF-2A | 37,5 | 47 | 24 |
| 18-20 | 3/4 | A507021-2022 | 1″3/16-12 UN-2A | 7/8-14 UNF-2A | 37,5 | 51 | 27 |
| 18-20 | 3/4 | A507021-2027 | 1″3/16-12 UN-2A | 1″1/16-12 UN-2A | 37,5 | 55 | 41 |
| 18-20 | 3/4 | A507021-2033 | 1″3/16-12 UN-2A | 1″5/16-12 UN-2A | 41,5 | 60 | 41 |
| 22-25 | 7/8-1″ | A507021-2527 | 1″7/16-12 UN-2A | 1″1/16-12 UN-2A | 42 | 59 | 35 |
| 22-25 | 7/8-1″ | A507021-2533 | 1″7/16-12 UN-2A | 1″5/16-12 UN-2A | 42 | 60 | 41 |
| 22-25 | 7/8-1″ | A507021-2541 | 1″7/16-12 UN-2A | 1″5/8-12 UN-2A | 45 | 62 | 50 |
| 28÷32 | 1″1/4 | A507021-3233 | 1″11/16-12 UN-2A | 1″5/16-12 UN-2A | 45 | 62,5 | 41 |
| 28÷32 | 1″1/4 | A507021-3241 | 1″11/16-12 UN-2A | 1″5/8-12 UN-2A | 45 | 62 | 50 |
| 28÷32 | 1″1/4 | A507021-3248 | 1″11/16-12 UN-2A | 1″7/8-12 UN-2A | 49 | 66 | 55 |
| 35-38 | 1″1/2 | SA507021-3841 | 2″-12 UN-2A | 1″5/8-12 UN-2A | 49 | 66 | 50 |
| 35-38 | 1″1/2 | A507021-3848 | 2″-12 UN-2A | 1″7/8-12 UN-2A | 49 | 66 | 55 |
| Vikt | N/A |
|---|---|
| Gänga T1 | 9/16" – ORFS, 11/16" – ORFS, 13/16" – ORFS, 1" – ORFS, 1.3/16" – ORFS, 1.7/16" – ORFS, 1.11/16" – ORFS, 2" – ORFS |
| Gänga T2 | 1.3/16" – SAE, 9/16" – SAE, 7/16" – SAE, 1/2" – SAE, 3/4" – SAE, 7/8" – SAE, 1.1/16" – SAE, 1.5/16" – SAE, 1.5/8" – SAE, 1.7/8" – SAE |
