JIC, Rak

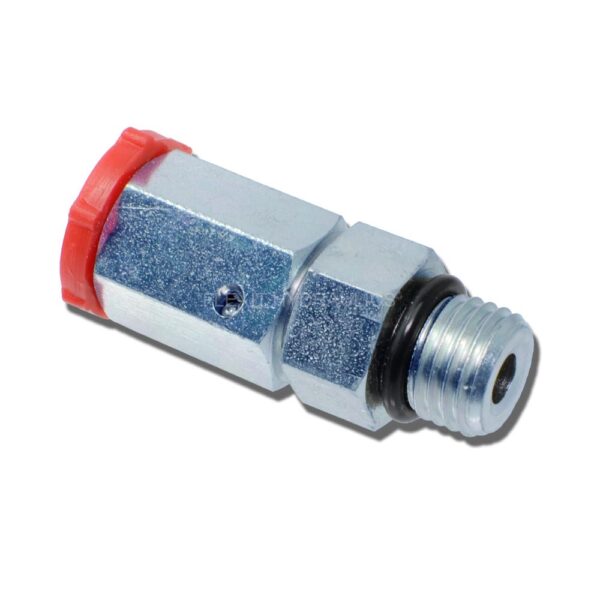

Adapter Rak JIC IR / SAE UNF UF O.R
Från: 75,00 kr
Invändig JIC adapter med svivlande mutter.
SAE gänga med O-ring
Rak Adapter JIC IR 37° kona / SAE UNF UF O-RING ISO 11926

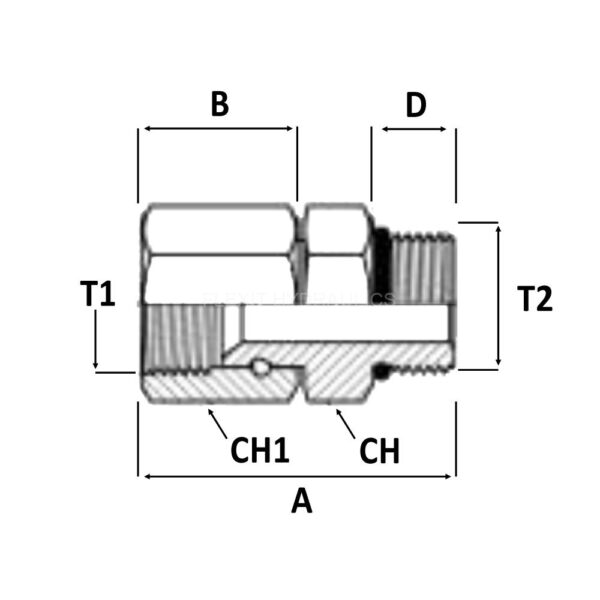

| T | Artikelnummer | T1 | T2 | A | B | D | CH | CH1 | |
| mm | in | ||||||||
| 6 | 1/4 | 61021660611 | 7/16-20 UNF-2A | 7/16-20 UNF-2A | 35,5 | 18,5 | 9 | 14 | 14 |
| 6 | 1/4 | 61021660612 | 7/16-20 UNF-2A | 1/2-20 UNF-2A | 35,5 | 18,5 | 9 | 16 | 14 |
| 6 | 1/4 | 61021660614 | 7/16-20 UNF-2A | 9/16-18 UNF-2A | 37,5 | 18,5 | 10 | 19 | 14 |
| 8 | 5/16 | 61021660811 | 1/2-20 UNF-2A | 7/16-20 UNF-2A | 37,5 | 20,5 | 9 | 14 | 17 |
| 8 | 5/16 | 61021660812 | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 37,5 | 20,5 | 9 | 16 | 17 |
| 10 | 3/8 | 61021661011 | 9/16-18 UNF-2A | 7/16-20 UNF-2A | 38,5 | 21,5 | 9 | 14 | 17 |
| 10 | 3/8 | 61021661014 | 9/16-18 UNF-2A | 9/16-18 UNF-2A | 40,5 | 21,5 | 10 | 19 | 17 |
| 10 | 3/8 | 61021661019 | 9/16-18 UNF-2A | 3/4-16 UNF-2A | 42 | 21,5 | 11 | 22 | 17 |
| 12 | 1/2 | 61021661214 | 3/4-16 UNF-2A | 9/16-18 UNF-2A | 42,5 | 23 | 10 | 22 | 22 |
| 12 | 1/2 | 61021661219 | 3/4-16 UNF-2A | 3/4-16 UNF-2A | 43,5 | 23 | 11 | 22 | 22 |
| 12 | 1/2 | 61021661222 | 3/4-16 UNF-2A | 7/8-14 UNF-2A | 46,5 | 23 | 13 | 27 | 22 |
| 12 | 1/2 | 61021661227 | 3/4-16 UNF-2A | 1″1/16-12 UN-2A | 51 | 23 | 15 | 32 | 22 |
| 14÷16 | 5/8 | 61021661619 | 7/8-14 UNF-2A | 3/4-16 UNF-2A | 47 | 26 | 11 | 24 | 27 |
| 14÷16 | 5/8 | 61021661622 | 7/8-14 UNF-2A | 7/8-14 UNF-2A | 49,5 | 26 | 13 | 27 | 27 |
| 14÷16 | 5/8 | 61021661627 | 7/8-14 UNF-2A | 1″1/16-12 UN-2A | 54 | 26 | 15 | 32 | 27 |
| 18-20 | 3/4 | 61021662019 | 1″1/16-12 UN-2A | 3/4-16 UNF-2A | 49,5 | 27,5 | 11 | 27 | 32 |
| 18-20 | 3/4 | 61021662022 | 1″1/16-12 UN-2A | 7/8-14 UNF-2A | 51 | 27,5 | 13 | 27 | 32 |
| 18-20 | 3/4 | 61021662027 | 1″1/16-12 UN-2A | 1″1/16-12 UN-2A | 55,5 | 27,5 | 15 | 32 | 32 |
| 18-20 | 3/4 | 61021662033 | 1″1/16-12 UN-2A | 1″5/16-12 UN-2A | 56,5 | 27,5 | 15 | 38 | 32 |
| 22 | 7/8 | 61021662230 | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 57 | 29 | 15 | 35 | 36 |
| 25 | 1″ | 61021662527 | 1″5/16-12 UN-2A | 1″1/16-12 UN-2A | 58 | 30 | 15 | 35 | 38 |
| 25 | 1″ | 61021662533 | 1″5/16-12 UN-2A | 1″5/16-12 UN-2A | 59 | 30 | 15 | 38 | 38 |
| 25 | 1″ | 61021662541 | 1″5/16-12 UN-2A | 1″5/8-12 UN-2A | 60,5 | 30 | 15 | 48 | 38 |
| 30-32 | 1″1/4 | 61021663233 | 1″5/8-12 UN-2A | 1″5/16-12 UN-2A | 63 | 32,5 | 15 | 41 | 50 |
| 30-32 | 1″1/4 | 61021663241 | 1″5/8-12 UN-2A | 1″5/8-12 UN-2A | 63 | 32,5 | 15 | 48 | 50 |
| 30-32 | 1″1/4 | 61021663248 | 1″5/8-12 UN-2A | 1″7/8-12 UN-2A | 64 | 32,5 | 15 | 55 | 50 |
| 38 | 1″1/2 | 61021663841 | 1″7/8-12 UN-2A | 1″5/8-12 UN-2A | 74,5 | 38 | 15 | 50 | 57 |
| 38 | 1″1/2 | 61021663848 | 1″7/8-12 UN-2A | 1″7/8-12 UN-2A | 70,5 | 38 | 15 | 55 | 57 |
| Vikt | N/A |
|---|---|
| Gänga T1 | 7/16" – JIC, 1/2" – JIC, 9/16" – JIC, 3/4" – JIC, 7/8" – JIC, 1.1/16" – JIC, 1.3/16" – JIC, 1.5/16" – JIC, 1.5/8" – JIC, 1.7/8" – JIC |
| Gänga T2 | 1.3/16" – SAE, 9/16" – SAE, 7/16" – SAE, 1/2" – SAE, 3/4" – SAE, 7/8" – SAE, 1.1/16" – SAE, 1.5/16" – SAE, 1.5/8" – SAE, 1.7/8" – SAE |
