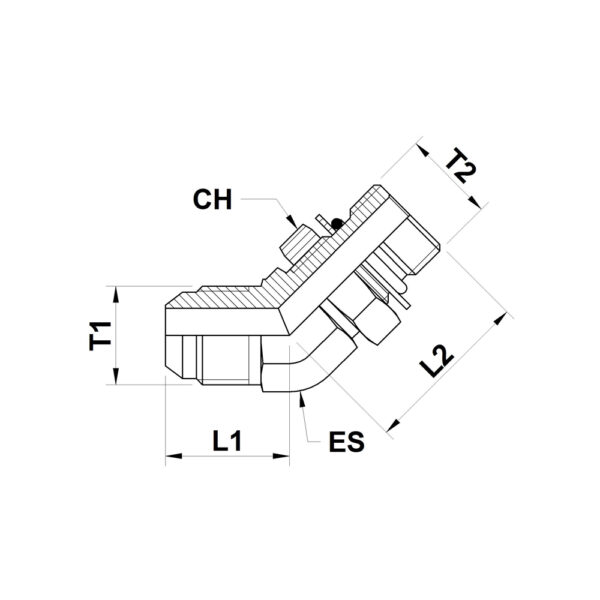

Adapter Ställbar 45° JIC UF 37° kona / SAE UNF UF (ISO 11926)
| T | Artikelnummer | T1 | T2 | B | C | CH | |
| mm | in | ||||||
| 6 | 1/4 | 61050150611 | 7/16-20 UNF-2A | 7/16-20 UNF-2A | 18 | 26,5 | 14 |
| 6 | 1/4 | 61050150612 | 7/16-20 UNF-2A | 1/2-20 UNF-2A | 19,5 | 26,5 | 17 |
| 6 | 1/4 | 61050150614 | 7/16-20 UNF-2A | 9/16-18 UNF-2A | 21 | 29 | 17 |
| 8 | 5/16 | 61050150812 | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 19,5 | 26,5 | 17 |
| 8 | 5/16 | 61050150814 | 1/2-20 UNF-2A | 9/16-18 UNF-2A | 21 | 29 | 17 |
| 10 | 3/8 | 61050151011 | 9/16-18 UNF-2A | 7/16-20 UNF-2A | 21 | 27,5 | 14 |
| 10 | 3/8 | 61050151012 | 9/16-18 UNF-2A | 1/2-20 UNF-2A | 21 | 27,5 | 17 |
| 10 | 3/8 | 61050151014 | 9/16-18 UNF-2A | 9/16-18 UNF-2A | 21 | 29 | 17 |
| 10 | 3/8 | 61050151019 | 9/16-18 UNF-2A | 3/4-16 UNF-2A | 22 | 33 | 22 |
| 12 | 1/2 | 61050151214 | 3/4-16 UNF-2A | 9/16-18 UNF-2A | 25 | 30 | 17 |
| 12 | 1/2 | 61050151219 | 3/4-16 UNF-2A | 3/4-16 UNF-2A | 25 | 33 | 22 |
| 12 | 1/2 | 61050151222 | 3/4-16 UNF-2A | 7/8-14 UNF-2A | 25,5 | 38,5 | 27 |
| 12 | 1/2 | 61050151227 | 3/4-16 UNF-2A | 1″1/16-12 UN-2A | 27,5 | 44 | 32 |
| 14÷16 | 5/8 | 61050151619 | 7/8-14 UNF-2A | 3/4-16 UNF-2A | 28 | 35 | 22 |
| 14÷16 | 5/8 | 61050151622 | 7/8-14 UNF-2A | 7/8-14 UNF-2A | 28 | 38,5 | 27 |
| 14÷16 | 5/8 | 61050151627 | 7/8-14 UNF-2A | 1″1/16-12 UN-2A | 30 | 44 | 32 |
| 18-20 | 3/4 | 61050152019 | 1″1/16-12 UN-2A | 3/4-16 UNF-2A | 32,5 | 37 | 22 |
| 18-20 | 3/4 | 61050152022 | 1″1/16-12 UN-2A | 7/8-14 UNF-2A | 32,5 | 40,5 | 27 |
| 18-20 | 3/4 | 61050152027 | 1″1/16-12 UN-2A | 1″1/16-12 UN-2A | 32,5 | 44 | 32 |
| 18-20 | 3/4 | 61050152033 | 1″1/16-12 UN-2A | 1″5/16-12 UN-2A | 35,5 | 47 | 38 |
| 22 | 7/8 | 61050152230 | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 35 | 45,5 | 35 |
| 25 | 1″ | 61050152527 | 1″5/16-12 UN-2A | 1″1/16-12 UN-2A | 37 | 47 | 32 |
| 25 | 1″ | 61050152533 | 1″5/16-12 UN-2A | 1″5/16-12 UN-2A | 37 | 47 | 38 |
| 25 | 1″ | 61050152541 | 1″5/16-12 UN-2A | 1″5/8-12 UN-2A | 39 | 48,5 | 50 |
| 30-32 | 1″1/4 | 61050153233 | 1″5/8-12 UN-2A | 1″5/16-12 UN-2A | 40,5 | 48,5 | 38 |
| 30-32 | 1″1/4 | 61050153241 | 1″5/8-12 UN-2A | 1″5/8-12 UN-2A | 40,5 | 48,5 | 50 |
| 38 | 1″1/2 | 61050153848 | 1″7/8-12 UN-2A | 1″7/8-12 UN-2A | 45 | 48,5 | 55 |
| Vikt | N/A |
|---|---|
| Gänga T1 | 7/16" – JIC, 1/2" – JIC, 9/16" – JIC, 3/4" – JIC, 7/8" – JIC, 1.1/16" – JIC, 1.3/16" – JIC, 1.5/16" – JIC, 1.5/8" – JIC, 1.7/8" – JIC |
| Gänga T2 | 1.3/16" – SAE, 9/16" – SAE, 7/16" – SAE, 1/2" – SAE, 3/4" – SAE, 7/8" – SAE, 1.1/16" – SAE, 1.5/16" – SAE, 1.5/8" – SAE, 1.7/8" – SAE |
