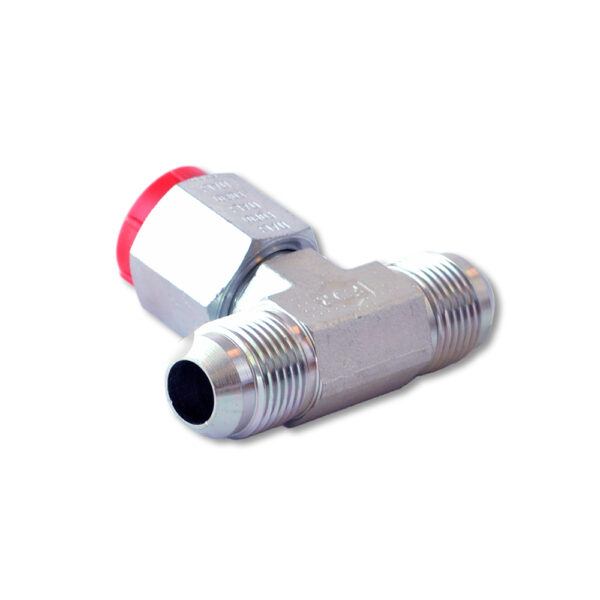

Adapter T JIC UF 37° kona / JIC UF 37° kona / JIC IR SW 37° kona
| T1 & T2 | T3 | Artikelnummer | T1 | T2 | T3 | B | B1 | C | CH | ||
| mm | in | mm | in | ||||||||
| 6 | 1/4 | 6 | 1/4 | 611101206 | 7/16-20 UNF-2A | 7/16-20 UNF-2A | 7/16-20 UNF-2A | 22,5 | 22,5 | 26 | 14 |
| 8 | 5/16 | 8 | 5/16 | 611101208 | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 24 | 24 | 28 | 17 |
| 10 | 3/8 | 10 | 3/8 | 611101210 | 9/16-18 UNF-2A | 9/16-18 UNF-2A | 9/16-18 UNF-2A | 27 | 27 | 32 | 17 |
| 12 | 1/2 | 12 | 1/2 | 611101212 | 3/4-16 UNF-2A | 3/4-16 UNF-2A | 3/4-16 UNF-2A | 31,5 | 31,5 | 35,5 | 22 |
| 14÷16 | 5/8 | 14÷16 | 5/8 | 611101216 | 7/8-14 UNF-2A | 7/8-14 UNF-2A | 7/8-14 UNF-2A | 36,5 | 36,5 | 42 | 27 |
| 18-20 | 3/4 | 18-20 | 3/4 | 611101220 | 1″1/16-12 UN-2A | 1″1/16-12 UN-2A | 1″1/16-12 UN-2A | 42 | 42 | 45,5 | 32 |
| 22 | 7/8 | 22 | 7/8 | 611101222 | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 1″3/16-12 UN-2A | 44 | 44 | 46,5 | 36 |
| 25 | 1″ | 25 | 1″ | 611101225 | 1″5/16-12 UN-2A | 1″5/16-12 UN-2A | 1″5/16-12 UN-2A | 46 | 46 | 51,5 | 38 |
| 30-32 | 1″1/4 | 30-32 | 1″1/4 | 611101232 | 1″5/8-12 UN-2A | 1″5/8-12 UN-2A | 1″5/8-12 UN-2A | 52 | 52 | 59,5 | 50 |
| 38 | 1″1/2 | 38 | 1″1/2 | 611101238 | 1″7/8-12 UN-2A | 1″7/8-12 UN-2A | 1″7/8-12 UN-2A | 59 | 59 | 67 | 57 |
| 8 | 5/16 | 8 | 5/16 | 6111012080810 | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 9/16-18 UNF-2A | 27 | 27 | 32 | 17 |
| 10 | 3/8 | 12 | 1/2 | 6111012101212 | 9/16-18 UNF-2A | 3/4-16 UNF-2A | 3/4-16 UNF-2A | 29 | 31,5 | 35,5 | 22 |
| 12 | 1/2 | 12 | 1/2 | 6111012121220 | 3/4-16 UNF-2A | 3/4-16 UNF-2A | 1″1/16-12 UN-2A | 37 | 37 | 45,5 | 32 |
| 12 | 1/2 | 14÷16 | 5/8 | 6111012121612 | 3/4-16 UNF-2A | 7/8-14 UNF-2A | 3/4-16 UNF-2A | 33,5 | 36,5 | 39 | 22 |
| 14÷16 | 5/8 | 10 | 3/8 | 6111012161016 | 7/8-14 UNF-2A | 9/16-18 UNF-2A | 7/8-14 UNF-2A | 36,5 | 31,5 | 42 | 27 |
| 14÷16 | 5/8 | 12 | 1/2 | 6111012161216 | 7/8-14 UNF-2A | 3/4-16 UNF-2A | 7/8-14 UNF-2A | 36,5 | 34 | 42 | 27 |
| 14÷16 | 5/8 | 14÷16 | 5/8 | 6111012161612 | 7/8-14 UNF-2A | 7/8-14 UNF-2A | 3/4-16 UNF-2A | 36,5 | 36,5 | 39 | 22 |
| 14÷16 | 5/8 | 14÷16 | 5/8 | 6111012161620 | 7/8-14 UNF-2A | 7/8-14 UNF-2A | 1″1/16-12 UN-2A | 39,5 | 39,5 | 45,5 | 32 |
| 14÷16 | 5/8 | 25 | 1″ | 6111012162520 | 7/8-14 UNF-2A | 1″5/16-12 UN-2A | 1″1/16-12 UN-2A | 42,5 | 46 | 49 | 32 |
| 18-20 | 3/4 | 14÷16 | 5/8 | 6111012201616 | 1″1/16-12 UN-2A | 7/8-14 UNF-2A | 7/8-14 UNF-2A | 42 | 39,5 | 44 | 27 |
| 18-20 | 3/4 | 14÷16 | 5/8 | 6111012201620 | 1″1/16-12 UN-2A | 7/8-14 UNF-2A | 1″1/16-12 UN-2A | 42 | 39,5 | 45,5 | 32 |
| 18-20 | 3/4 | 18-20 | 3/4 | 6111012202012 | 1″1/16-12 UN-2A | 1″1/16-12 UN-2A | 3/4-16 UNF-2A | 42 | 42 | 41 | 22 |
| 18-20 | 3/4 | 18-20 | 3/4 | 6111012202016 | 1″1/16-12 UN-2A | 1″1/16-12 UN-2A | 7/8-14 UNF-2A | 42 | 42 | 44 | 27 |
| 18-20 | 3/4 | 18-20 | 3/4 | 6111012202025 | 1″1/16-12 UN-2A | 1″1/16-12 UN-2A | 1″5/16-12 UN-2A | 45 | 45 | 51,5 | 38 |
| 18-20 | 3/4 | 25 | 1″ | 6111012202520 | 1″1/16-12 UN-2A | 1″5/16-12 UN-2A | 1″1/16-12 UN-2A | 44,5 | 46 | 49 | 32 |
| 18-20 | 3/4 | 25 | 1″ | 6111012202525 | 1″1/16-12 UN-2A | 1″5/16-12 UN-2A | 1″5/16-12 UN-2A | 45 | 46 | 51,5 | 38 |
| 25 | 1″ | 14÷16 | 5/8 | 6111012251625 | 1″5/16-12 UN-2A | 7/8-14 UNF-2A | 1″5/16-12 UN-2A | 46 | 41,5 | 51,5 | 38 |
| 25 | 1″ | 25 | 1″ | 6111012252516 | 1″5/16-12 UN-2A | 1″5/16-12 UN-2A | 7/8-14 UNF-2A | 46 | 46 | 47,5 | 27 |
| 25 | 1″ | 25 | 1″ | 6111012252520 | 1″5/16-12 UN-2A | 1″5/16-12 UN-2A | 1″1/16-12 UN-2A | 46 | 46 | 49 | 32 |
| 30-32 | 1″1/4 | 25 | 1″ | 6111012322532 | 1″5/8-12 UN-2A | 1″5/16-12 UN-2A | 1″5/8-12 UN-2A | 52 | 50,5 | 59,5 | 50 |
| 30-32 | 1″1/4 | 30-32 | 1″1/4 | 6111012323225 | 1″5/8-12 UN-2A | 1″5/8-12 UN-2A | 1″5/16-12 UN-2A | 52 | 52 | 57 | 38 |
| 38 | 1″1/2 | 25 | 1″ | 6111012382538 | 1″7/8-12 UN-2A | 1″5/16-12 UN-2A | 1″7/8-12 UN-2A | 59 | 54,5 | 65 | 57 |
| Vikt | N/A |
|---|---|
| Gänga T1 | 7/16" – JIC, 1/2" – JIC, 9/16" – JIC, 3/4" – JIC, 7/8" – JIC, 1.1/16" – JIC, 1.5/16" – JIC, 1.5/8" – JIC, 1.7/8" – JIC |
| Gänga T2 | 7/16" – JIC, 1/2" – JIC, 9/16" – JIC, 3/4" – JIC, 7/8" – JIC, 1.1/16" – JIC, 1.5/16" – JIC, 1.5/8" – JIC, 1.7/8" – JIC |
| Gänga T3 | 7/16" – JIC, 1/2" – JIC, 9/16" – JIC, 3/4" – JIC, 7/8" – JIC, 1.1/16" – JIC, 1.5/16" – JIC, 1.5/8" – JIC, 1.7/8" – JIC |
